In many situations, you may want to jump to a location that is very far away from the current function. Sometimes, the destination is even not in the same function. For example, when a signal occurs, the program logic may require the control flow be sent to a very special function after the signal is handled. In this case, some addition mechanism is required to perform this type of non-local gotos. This is the job of header file setjmp.h and functions setjmp() and longjmp().
To perform non-local gotos, you need to do the following:
This jump buffer is used to store the ``environment'' of a return point in your program.jmp_buf JumpBuffer;
The above saves the current state of program execution at that point to the jump buffer JumpBuffer.jmp_buf JumpBuffer; setjmp(JumpBuffer);
In this case, longjmp() sends the control back to the place where the jump buffer JumpBuffer receives its most recent information.jmp_buf JumpBuffer; longjmp(JumpBuffer, 1);

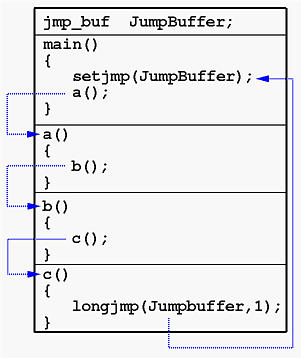

The main program sets a jump buffer with setjmp() and then calls a(). In a(), it calls b() which, in turn, calls c(). In function c(), since it has a longjmp() call with jump buffer JumpBuffer, the control will be sent back to the place where JumpBuffer receives its value. As a result, all function returns are by-passed.
Now you see the meaning of non-local. The longjmp() executes a goto across several functions!
In the figure, the blue dot arrows indicate program execution flow.
In function A(), when setjmp(Jump) is executed the first time, it returns 0 and marks a return point. The if statement tests the return value (in this case, 0) and prints a message. Sometime later, function B() is called and executes longjmp(Jump,1) with the second argument being 1. Then, the control is sent back to the place where the content of Jump is saved. This is, of course, the setjmp(Jump) call in function A(). Since this is a return from a longjmp() call, the value of the second argument of longjmp() is considered to be the return value of setjmp(). In this case, when the second time the control returns to setjmp(), its return value is 1 which forces the execution enters the else part.#include <stdio.h> #include <setjmp.h> jmp_buf Jump; void A(...) { if (setjmp(Jump) == 0) { printf("A return point marked\n"); ..... } else { printf("Just returned from a long journey\n"); ..... } } void B(....) { ..... longjmp(Jump, 1); /* cannot reach here */ }
The following figure illustrates this flow of control. The first time the control flow passes through setjmp(), jump buffer Jump is set and setjmp() returns 0. Therefore, the control flow follows the red arrow. The second time the control flow passes through setjmp(), which is due to the execution of the longjmp(Jump,1) in function B(), the return value of setjmp() is 1, the second argument of the call to longjmp(Jump,1). This brings the control flow to the else part. In the figure, this is represented with blue dot arrow.
